The Refleks 66MW is a premium, bulkhead-mounted version of the legendary Refleks diesel stove. Designed specifically for vessels where floor space is at a premium, this compact unit provides efficient heating while maintaining a sleek, elevated profile. Like the standard 66M, the 66MW delivers a heat output of 0.5kW to 1.6kW with an ultra-low fuel consumption of 0.1 to 0.3 litres per hour, making it an ideal choice for smaller narrowboats, sailing yachts, and even camper vans or glamping pods.
Refleks 66MW: Space-Saving Elegance and Efficiency

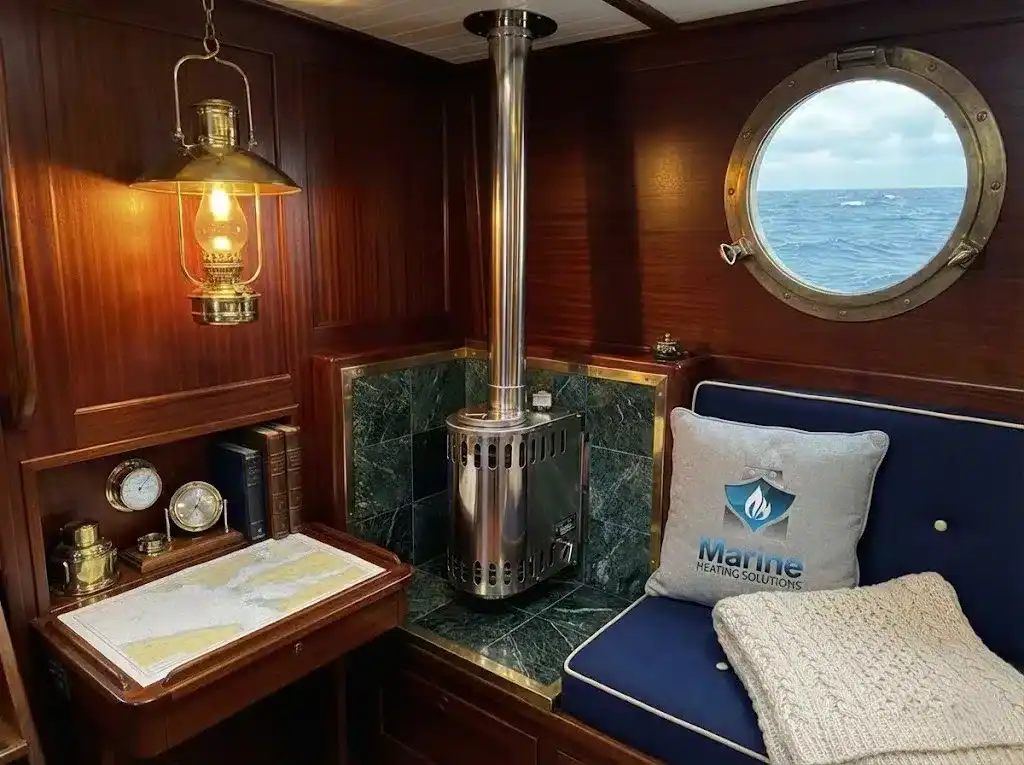

The Refleks 66MW bulkhead-mounted stove offers the same reliable, electricity-free operation as the rest of the Refleks family. Its robust stainless steel construction can be customised with copper or brass body finishes and matching flue guards to complement your vessel’s interior. With a maximum heating capacity of 23m³ for insulated spaces, it provides a consistent, dry heat that is perfect for maintaining comfort in damp marine environments. Its wall-mounted design not only optimises space but also adds a unique maritime aesthetic to any galley or cabin.
Expert Installation and Safety Standards
Bulkhead-mounted stoves require careful installation to ensure structural integrity and correct flue alignment. According to the official Refleks installation outline, maintaining proper clearances is essential for safety. Our OFTEC-trained engineers specialise in bulkhead-mounted diesel stove installations, ensuring they meet all Boat Safety Scheme (BSS) requirements. We are currently offering free installation for our 66MW Narrowboat Stove Kits during the Winter 2025/2026 season.
Custom Orders and Safety Certification
The Refleks 66MW is made to order, with a typical lead time of 2 to 5 weeks. Upon completion of every installation, Marine Heating Solutions provides a professional diesel appliance safety certificate, which is vital for your insurance and BSS compliance. For additional technical guidance, you can consult the OFTEC consumer guide for liquid fuel appliances. Don’t forget to ask about our appliance trade-in deals to save on your upgrade.
Free Installation Offer Winter 2025/2026
We are offering free installation for all narrowboat stove kits between the 15th of November 2025 and the 15th of February 2026. See individual appliance listing for boat stove kit prices. Email us for details.
Specifications:

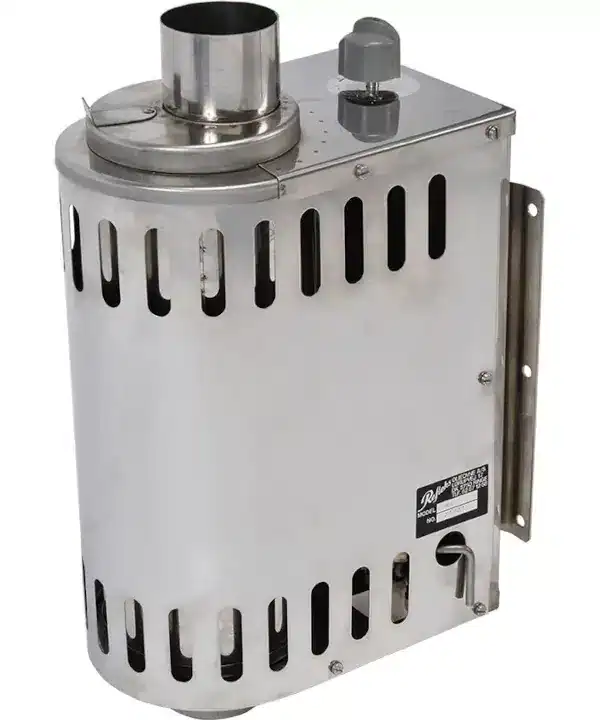

- Model: Refleks 66MW Bulkhead Mounted
- Type: Diesel Boat Stove
- Dimensions: Height: 370 mm; Diameter: 170 mm; Depth 280 mm
- Weight: 6 kg
- Heat Output: 0.5kW to 1.6kW
- Fuel Consumption: 0.1 to 0.3 litres per hour
- Ignition Type: Manual
- Material: Stainless steel (brass and copper body options)
- Applications: Boats, Campervans, Caravans, Glamping Pods, Shepherd’s Huts
Refleks 66MW Bulkhead Mounted Narrowboat Stove Kit:
Includes Refleks 66MW Bulkhead Mounted Diesel Boat Stove, Flue Kit, Fuel Line Kit, Fire Valve, and Safety Certificate.
£2598.00 including free installation Winter 25/26
Refleks 66MW Bulkhead Mounted Stove Price:
£1482.00
Optional Extras:
- Flue Kit – £785.00
- Flue Guard Stainless Steel – £138.00; Copper/Brass – £216.00
- Copper or Brass Body – £239.00
- Drip Tray – £139.00
- Fuel Line Kit (Marine Fuel Filter, Valves, Copper Pipe, Clips, Fittings) – £225.00
- Remote Sensing Fire Stop Valve – £85.00
- Diesel Appliance Safety Certificate – £59.00
Made To Order
Refleks 66MW bulkhead-mounted boat stoves are made to order. Depending on the time of year, waiting times for delivery can be around 2 to 5 weeks approximately. Please ensure that you are prepared to wait for your stove to be custom-made. The manufacturing process begins when we receive the order. Therefore, your order cannot be amended, cancelled, or returned as unwanted once you have paid for it.
